Field Selectable LED Downlight Retrofit; Deep Baffle; 8/10.5/13.5 Watts; 27K/30K/35K/40K/50K CCT; (S11883)

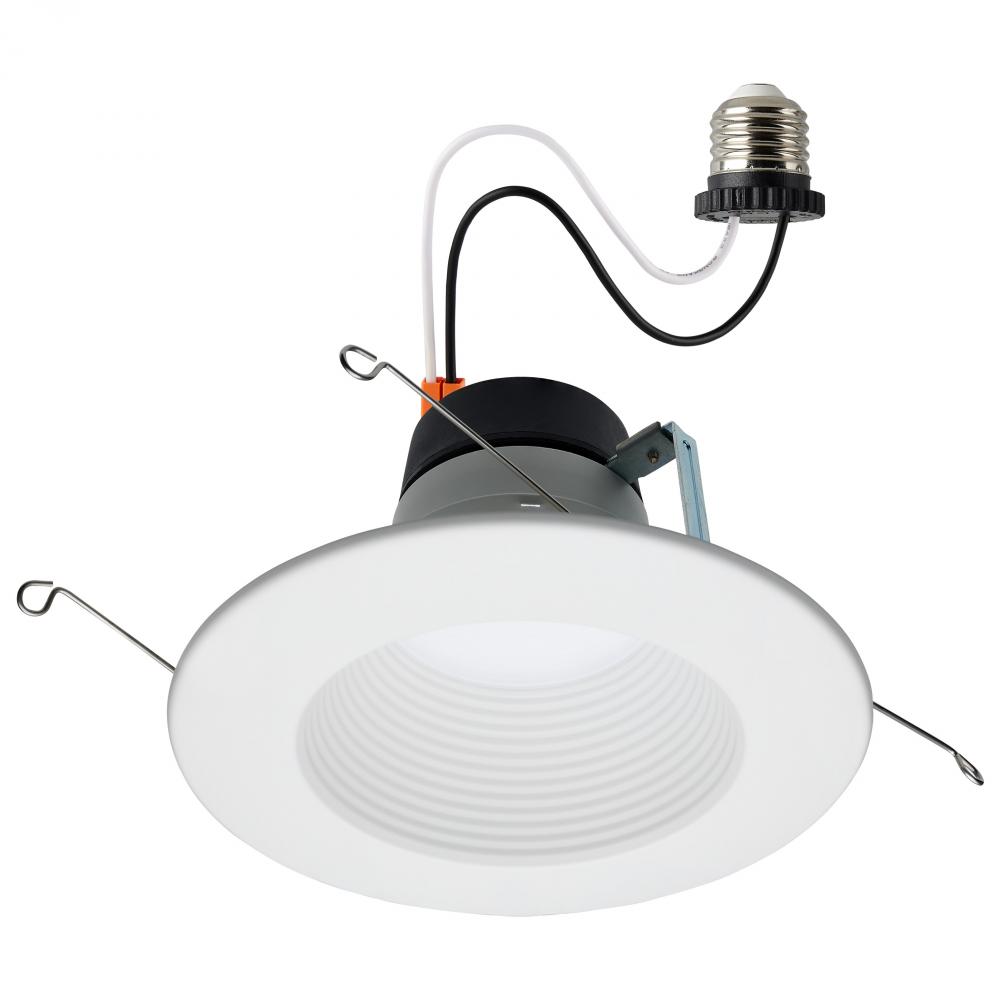

Field Selectable LED Downlight Retrofit; Deep Baffle; 8/10.5/13.5 Watts; 27K/30K/35K/40K/50K CCT; 5-6 Inch; Round Shape; White Finish; 120 Volts
Product Specification
Item #
S11883
Dimensions
Height: 4.31"
Width: 7.20"
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
Energy Star
, LED
, Prop 65
Category
Recessed
Sub Category
Retrofits
Style
Utility
Bulb Hours
50000
Bulb Kelvin
Warm White to Natural Light
Bulb Shape
Integrated LED
Bulb Type
LED
Diameter
7.2
Dimmable
Yes-Dimmable
Harmonized Codes
8539.52.0091
Lumens
800L/1000L/1200L
Ship Carton Height
8.460000000000001
Ship Carton Length
7.36
Ship Carton Width
4.13
Warranty
5 Year Limited - Fixtures
Air Tight
No
Amps
0.069/0.088/0.116A
ANSI Base
E26 Adapter
Beam Spread
75
CA Prop-65
Lead
Can Size
5-6 in.
Carton Cubic Feet
0.1488
Cartons Per Unit
1
CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
5.00 in. Cutout
Connection
Connector or Adapter
Country Of Origin
China
CRI
90
Dimmable Down To
100 to 10 percent
Dimming Type
Phase cut
Efficacy
100.00/95.24/88.89 LPW
ES Unique ID
ESID-3354725
FCC Compliant
Yes
Feature 1
CCT and Wattage Selectable
Feature 2
Stepped Baffle for Reduced Glare
Feature 3
Dimmable
Feature 4
E26 Adapter Included
Feature 5
90 CRI
Feature 6
Wet Location Rated
Feature 7
Accessories available to meet Non-Conductive "Dead-Front" Trim Requirements
Feature 8
50,000 Hour Functional Life
Finish Family
White
Fixture shape
Round
IC Rated
No
Incandescent Equivalent
100W
Indoor Outdoor
Indoor
JA8 Compliant
Yes
Lens Material
Polycarbonate (PC)
Long Description
SATCO|NUVO’s S11883 5/6-inch round field selectable deep baffle retrofit downlight is designed with the look of sophistication in mind. The deep stepped baffle crafted on this downlight drastically reduces glare and with a high CRI rating of 90, users ca
Material
Aluminum
Mounting Procedure
Ceiling
Operating Frequency
60Hz
Operating Temprature
-20C (-4F) to +40C (+104F)
Pack Type
Color Box
Power Factor
0.96
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO’s LED Field Selectable Deep Baffle Retrofit Downlights are designed with the look of sophistication in mind. The deep stepped baffle crafted on these downlights drastically reduces glare and with a high CRI rating of 90, users can enjoy enhanc
Safety Listing
cETLus - Classified
Short Description
13.5WLED/DLR/5-6/WS/5CCT/RD/DB
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
Yes
Title 24 Compliant
Yes
Total Harmonic Distortion
<25%
Wattage Selectable
Yes
Weight Lb.
0.5600000000000001
