5 Watt Mini LED; G9 Base; 5000K; Clear Finish; 120 Volt
Image may not reflect selected features

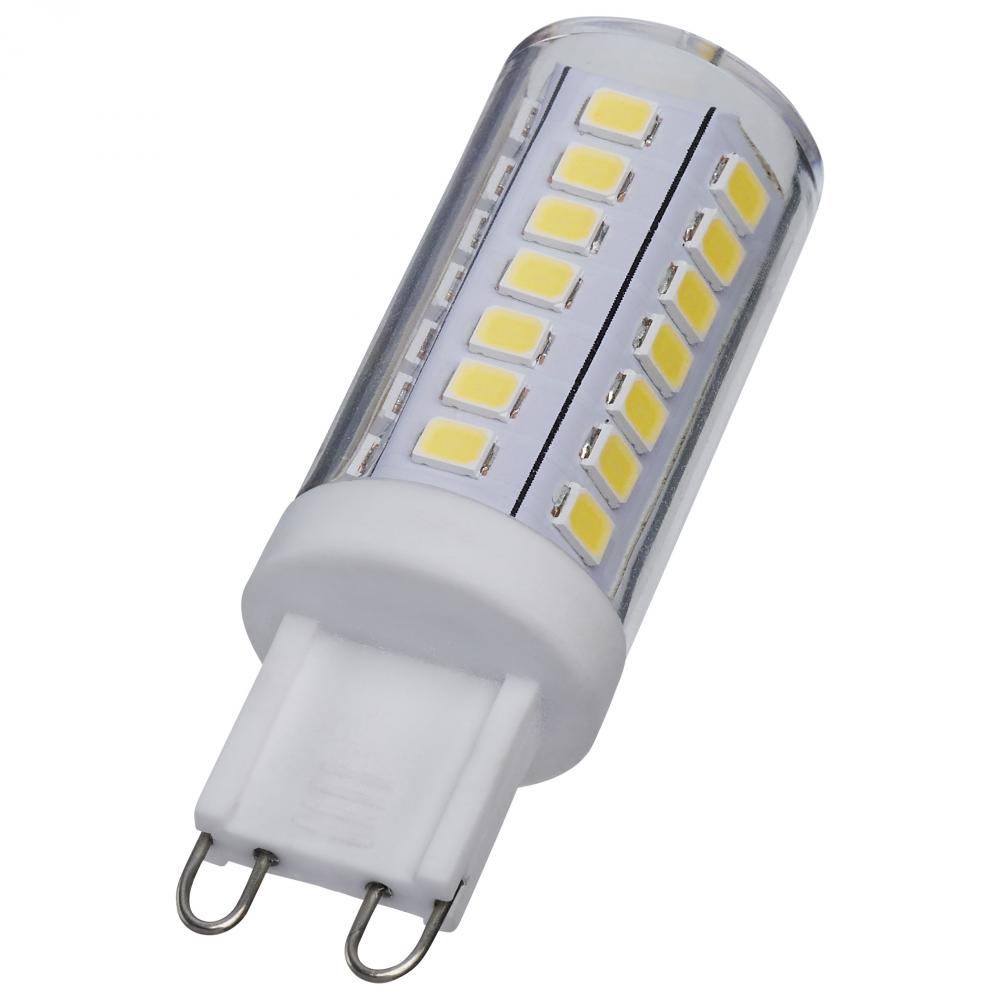

5 Watt Mini LED; G9 Base; 5000K; Clear Finish; 120 Volt (S12131)
5 Watt Mini LED; G9 Base; 5000K; Clear Finish; 120 Volt
Product Specification
Item #
S12131
Dimensions
Width: 0.75"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
Mini and Pin-Based LED
Volts
120V
Bulb Dimmable
Yes-Dimmable
Bulb Hours
25000
Bulb Kelvin
5000K
Bulb Shape
T4
Diameter
0.75
EA Length
3.27
Harmonized Codes
8539.52.0091
Length
2.17
Lumens
550L
Shap Carton Width
0.75
Ship Carton Height
4.84
Ship Weight
0.08
Warranty
3 Year Limited - Mini LED Pin Base
Weight
0.06
Additional Info
Housing Material: Ceramic; Lens Material: Polycarbonate (PC)
Beam Spread
300
Bulb ANSI Base
G9
Bulb Base
G9 Double Loop
Bulb Finish
Clear
Candle Power
40
Carton Cubic Feet
0.0069
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Natural Light
Country Of Origin
China
CRI
80
Dimmable Down To
100 to 10 percent
Dimmable Function
120V only
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable or Triac
Efficacy
110.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
300 degree Omni-Directional Light
Feature 2
Clear Lamp Finish
Feature 3
5000K CCT
Feature 4
Damp location rated
Feature 5
T4, Double Loop G9 Base
Feature 6
Enclosed Fixture Rated
Feature 7
25,000 Life Hours
Housing Color
White
Incandescent Equivalent
40W
Indoor Outdoor
Indoor
Installation Notes
Not for use in vapor tight fixtures.
Lamp Filament
LED
Location Rating
Damp
Long Description
Transform your surroundings with SATCO|NUVO's S12131 5-watt, T4, G9-base, Halogen replacement lamp, engineered for optimal energy efficiency and affordability. With a CCT of 5000K and emitting a 300-degree omni-directional light, this lamp is ideal for
Material
Ceramic / Polycarbonate (PC)
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Order In Multiples Of
1
Pack Type
Carded
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Transform your surroundings with SATCO|NUVO's selection of GY6.35, G8, and G9 Halogen replacement lamps, engineered for optimal energy efficiency and affordability. Offering a range of shapes, bases, CCT's, and finishes, these lamps utilize cutting
Short Description
5W/LED/G9/850/CL/120V/1CD
Style
Utility
Surge Protection
Built-in surge protection - 1.5KV
Technology
LED
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
70%
Wattage Selectable
No
Watts
5W
Finish Family
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
8
66
/ / 1
($8.66 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 3035 items available.
