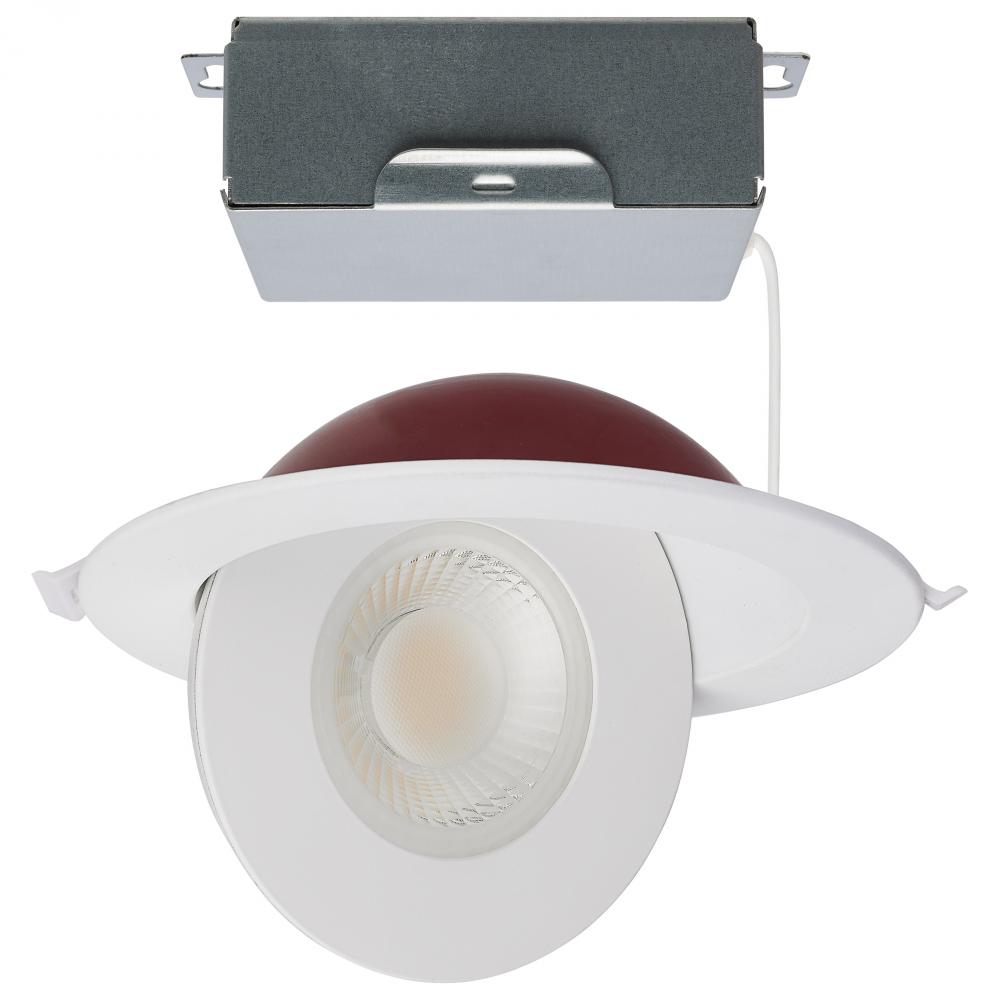

15 Watt LED; Fire Rated; 6 Inch Direct Wire Directional Downlight; Round Shape; White Finish; CCT (S11881)
15 Watt LED; Fire Rated; 6 Inch Direct Wire Directional Downlight; Round Shape; White Finish; CCT Selectable; Dimmable; 120 Volts
Product Specification
Item #
S11881
Dimensions
Height: 2.17"
Width: 7.48"
Additional product details
Category
Recessed Ltg.
Subcategory
Recessed Lighting Trims
Finish
White
Option
Energy Star
, LED
, Prop 65
Category
Recessed
Sub Category
Direct Wire
Style
Utility
Additional Info
2HR Fire Rated: Tested to comply with UL 263/ASTM E119/CAN-ULC S101-07
Bulb Hours
50000
Bulb Kelvin
Warm White to Natural Light
Bulb Shape
Integrated LED
Bulb Type
LED
Diameter
7.48
Dimmable
Yes-Dimmable
Harmonized Codes
9405.11.8010
Lumens
1280L
Ship Carton Height
8.27
Ship Carton Length
8.19
Ship Carton Width
3.94
Warranty
5 Year Limited - Fixtures
Air Tight
Yes
Amps
0.14A
BAA Compliant
No
Beam Spread
40
CA Prop-65
Lead
Can Size
6 in.
Carton Cubic Feet
0.1544
Cartons Per Unit
1
CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
6.313 in. Cutout
Clearance Height
3
Connection
Direct Wired
Country Of Origin
Vietnam
CRI
90
Dimmable Down To
100 to 10 percent
Dimming Type
Triac
Efficacy
85.33 LPW
ES Category
Downlight Recessed
ES Unique ID
ESID-2684099
FCC Compliant
Yes
Feature 1
2-Hour Fire Rated
Feature 10
IC Rated
Feature 2
6-inch Round
Feature 3
Dimmable
Feature 4
CCT Selectable
Feature 5
360-Degree Rotation; 80-Degree Tilt
Feature 6
White Trim
Feature 7
Red Painted Back Plate
Feature 8
Wet Location Rated
Feature 9
90 CRI
Finish Family
White
Fixture shape
Round
Has Driver
Yes
Has Emergency Battery
No
IC Rated
Yes
Incandescent Equivalent
75W
Indoor Outdoor
Indoor
IOT Enabled
No
JA8 Compliant
Yes
Lens Finish
Frost
Lens Material
Poly methyl methacrylate (PMMA)
Long Description
SATCO|NUVO’s S11881 6-inch Round Fire Rated Directional Downlight is the perfect solution to increase safety and offer focused light. Designed to provide exceptional illumination, this downlight also provides two hours of protection in the event of a fir
Material
Aluminum
Max Drywall Thickness
1 in.
Mounting Procedure
Recessed Ceiling
Operating Frequency
60Hz
Operating Temprature
-20C (-4F) to +40C (+104F)
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
51
Rec Spacing Between Fixtures
3 ft. to 4 ft.
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO’s Fire Rated Directional Downlights are the perfect solution to increase safety and offer focused light. Designed to provide exceptional illumination, these downlights also provide two hours of protection in the event of a fire, Improve illumi
Safety Listing
cETLus - Listed
SDS class
LED_Lamp
Short Description
15WLED/DW-FR/6/CCT-SEL/RND/DIR
Sloped Ceiling Compatible
Yes
Specification Notes
Rotation Angle 360 degrees; Tilt Angle 80 degrees
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
Yes
Total Harmonic Distortion
<30%
Trim Material
Aluminum
Wattage Selectable
No
Weight Lb.
1.57
Finish
