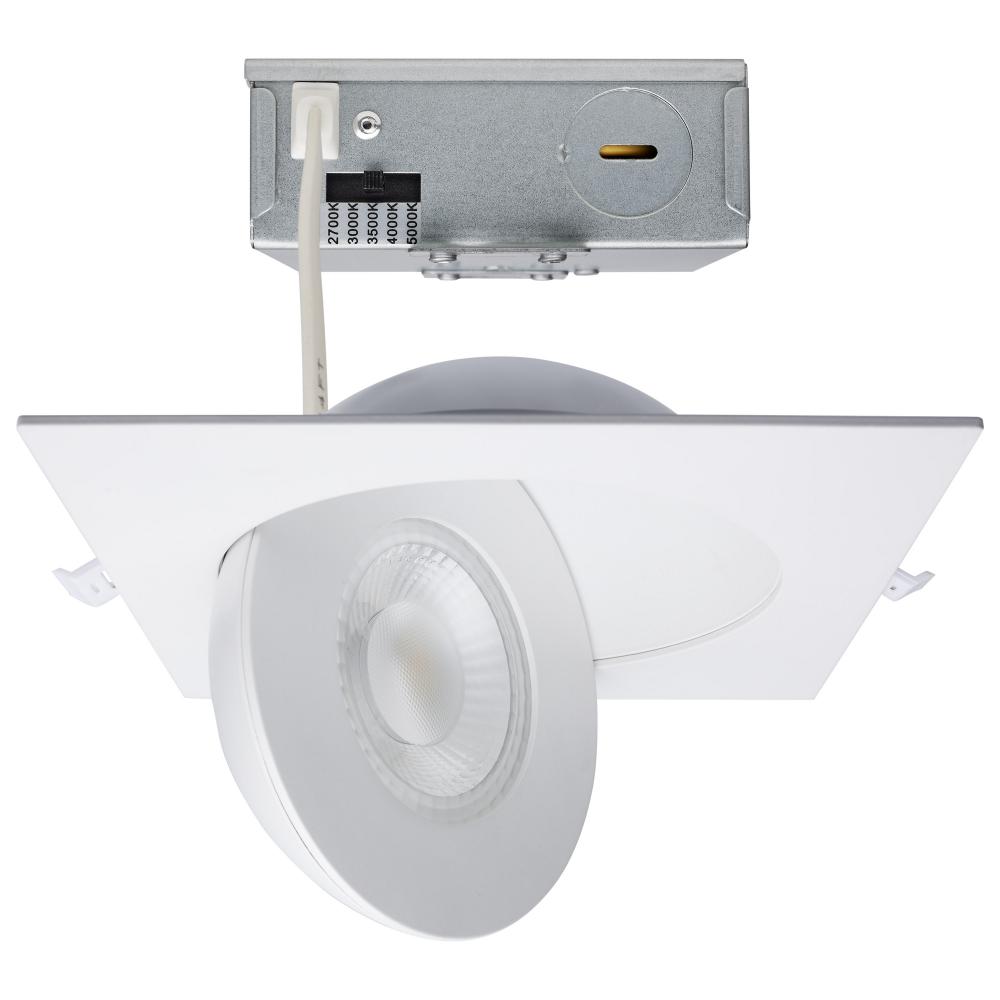

15 Watt; CCT Selectable; LED Direct Wire Downlight; Gimbaled; 6 Inch Square; Remote Driver; White (S11861)
15 Watt; CCT Selectable; LED Direct Wire Downlight; Gimbaled; 6 Inch Square; Remote Driver; White
Product Specification
Item #
S11861
Dimensions
Height: 2.17"
Width: 7.48"
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
Energy Star
, LED
, Prop 65
Lumens
1101-1600
Kelvin
4001-4500
Wattage
15w
Category
Recessed
Sub Category
Direct Wire
Style
Utility
Bulb Hours
50000
Bulb Kelvin
Warm to Cool White
Bulb Shape
Integrated LED
Bulb Type
LED
Dimmable
Yes-Dimmable
Harmonized Codes
9405.11.8010
Length
7.48
Lumens
1280L-1400L
Ship Carton Height
8.19
Ship Carton Length
8.699999999999999
Ship Carton Width
3.94
Warranty
5 Year Limited - LED Commercial Downlights
Air Tight
Yes
Amps
0.125A
ANSI Base
Integrated
Beam Spread
40
CA Prop-65
Lead
Can Size
6 in.
Carton Cubic Feet
0.1625
Cartons Per Unit
1
CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
6.313 in. Cutout
Clearance Height
3
Connection
Direct Wired
Country Of Origin
China
CRI
90
Dimmable Down To
100 to 10 percent
Dimming Type
Forward Phase
Efficacy
85.33/89.33/93.33 LPW
ES Category
Downlight Recessed
ES Unique ID
ESID-2470768
FCC Compliant
Yes
Feature 1
CCT Selectable
Feature 2
360 Degree Rotation
Feature 3
0 to 80 Degree aiming angle
Feature 4
Damp location rated
Feature 5
Long life, 50,000 hours
Feature 6
Energy Star certified
Finish Family
White
Fixture shape
Square
Has Driver
Yes
Has Emergency Battery
No
IC Rated
Yes
Incandescent Equivalent
75W
Indoor Outdoor
Indoor
Installation Notes
**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
IOT Enabled
No
IP Rating
IP42
JA8 Compliant
Yes
Lens Finish
Clear
Lens Material
Plastic
Long Description
The white, six inch square, Satco S11861 gimbaled downlight delivers multiple advantages to any general recessed lighting project. Our ColorQuick technology allows the user to choose the color temperature from five different settings and brings the perfect
Material
Aluminum
Max Drywall Thickness
1 in.
Mounting Procedure
Recessed Ceiling
Operating Frequency
60Hz
Operating Temprature
-20C (-4F) to +45C (+113F)
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
59
Rec Spacing Between Fixtures
3 ft. to 4 ft.
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
These low profile, CCT selectable remote driver downlights deliver multiple advantages to any general recessed lighting project. Our ColorQuick technology allows the user to choose the color temperature from five different settings and brings the perfect l
Safety Listing
cETLus - Listed
SDS class
LED_Lamp
Short Description
15WLED/GBL/6/CCT/SQ/WH
Sloped Ceiling Compatible
Yes
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
Yes
Wattage Selectable
No
Weight Lb.
1.06
