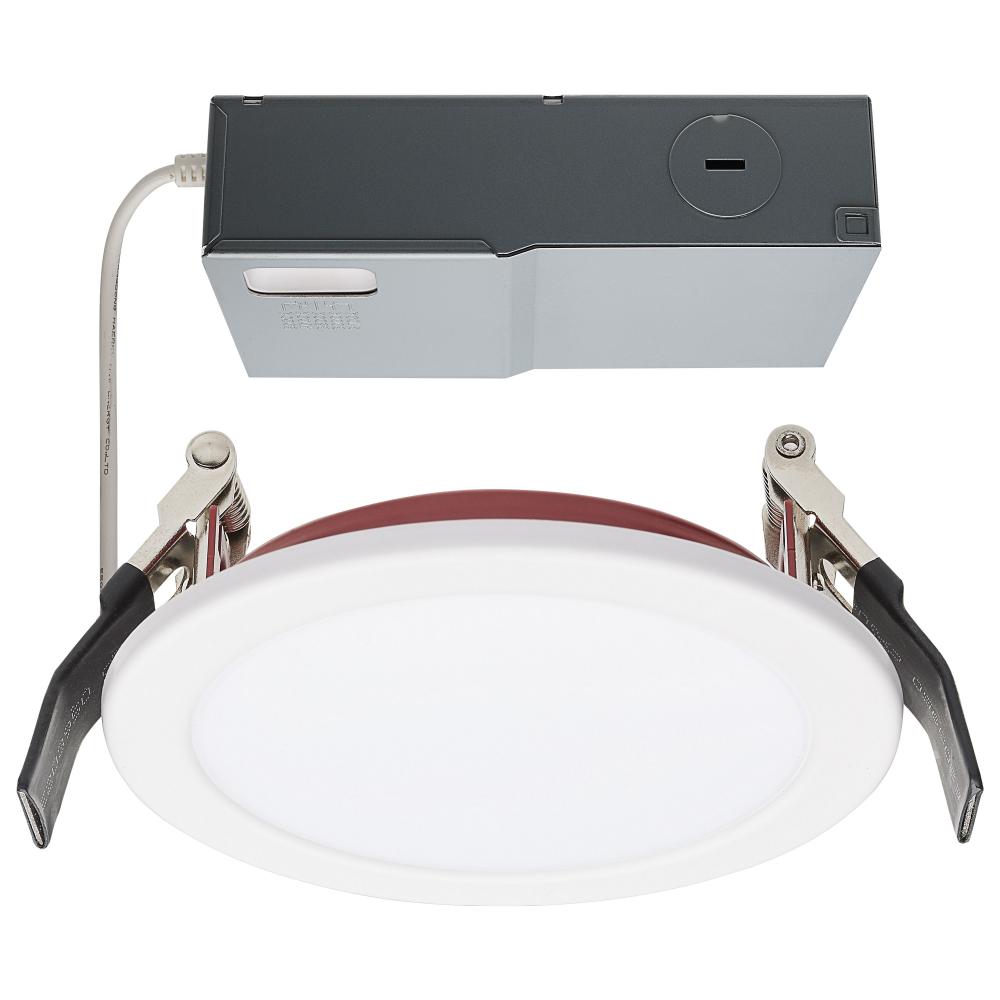

10 Watt LED; Fire Rated 4 Inch Direct Wire Downlight; Round Shape; White Finish; CCT Selectable; 120 (S11864)
10 Watt LED; Fire Rated 4 Inch Direct Wire Downlight; Round Shape; White Finish; CCT Selectable; 120 Volts; Dimmable
Product Specification
Item #
S11864
Dimensions
Height: 0.69"
Width: 4.75"
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
Combination Finishes
, White
, Red
Option
Energy Star
, LED
, Prop 65
Lumens
450-800
Kelvin
4001-4500
Category
Recessed
Sub Category
Direct Wire
Style
Specialty
Additional Info
2HR Fire Rated: Tested to comply with UL 263/ASTM E119/CAN-ULC S101-07; White Trim/Red Backplate
Bulb Hours
50000
Bulb Kelvin
Warm White to Natural Light
Bulb Shape
Integrated LED
Bulb Type
LED
Diameter
4.75
Dimmable
Yes-Dimmable
Harmonized Codes
9405.11.6010
Lumens
800L
Ship Carton Height
5.43
Ship Carton Length
5.83
Ship Carton Width
2.68
Warranty
5 Year Limited - Fixtures
Air Tight
Yes
Amps
0.083A
ANSI Base
Integrated
BAA Compliant
No
Beam Spread
110
CA Prop-65
Lead
Carton Cubic Feet
0.0491
Cartons Per Unit
1
CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
3.875 in. Cutout
Clearance Height
4.134
Connection
Direct Wired
Country Of Origin
Cambodia
CRI
90
Dimmable Down To
100 to 10 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable or Triac
Efficacy
80.00 LPW
Enclosure Rating
No
ES Category
Downlight Recessed
ES Unique ID
ESID-2473552
FCC Compliant
Yes
Feature 1
Fire rated up to 2-hours
Feature 2
Red painted backplate for easy identification
Feature 3
5 CCT Selectable
Feature 4
90 CRI
Feature 5
Wet Location Rated
Feature 6
Dimmable
Feature 7
IC Rated
Feature 8
Air Tight Rated
Finish Family
White
Fixture shape
Round
IC Rated
Yes
Incandescent Equivalent
60W
Indoor Outdoor
Indoor
IOT Enabled
No
JA8 Compliant
Yes
Lens Finish
Frost
Lens Material
Polycarbonate (PC)
Long Description
SATCO|NUVO's 4 inch Flat Lens Fire Rated Downlight is the perfect solution for installations with low ceiling clearance. Designed to provide exceptional illumination, this downlight provides two hours of protection in the event of a fire. Increase safe
Material
Aluminum / Steel
Max Drywall Thickness
1.181 in.
Mounting Procedure
Ceiling
NSF Approved
No
Operating Frequency
60Hz
Operating Temprature
-20C (-4F) to +40C (+104F)
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
59
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's Fire Rated Downlights are the perfect solution for installations with low ceiling clearance. Designed to provide exceptional illumination, these downlights provide two hours of protection in the event of a fire. Increase safety and peace o
Safety Listing
cULus - Certified
SDS class
LED_Lamp
Short Description
10WLED/4/FR/CCT/SLF/RD/FL/RND
Sloped Ceiling Compatible
No
Specification Notes
Driver Dimensions: 4.50" x 3.00" x 1.25"
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
Yes
Total Harmonic Distortion
<20%
Trim Color
White
Trim Material
Metal
Wattage Selectable
No
Weight Lb.
1.02
Finish
Additional options that would change other selections
Recommended Items
Call for Price
BASE PRICE:
$
34
95
/
/ 1
($34.95 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 4134 items available.
Point of Sale
