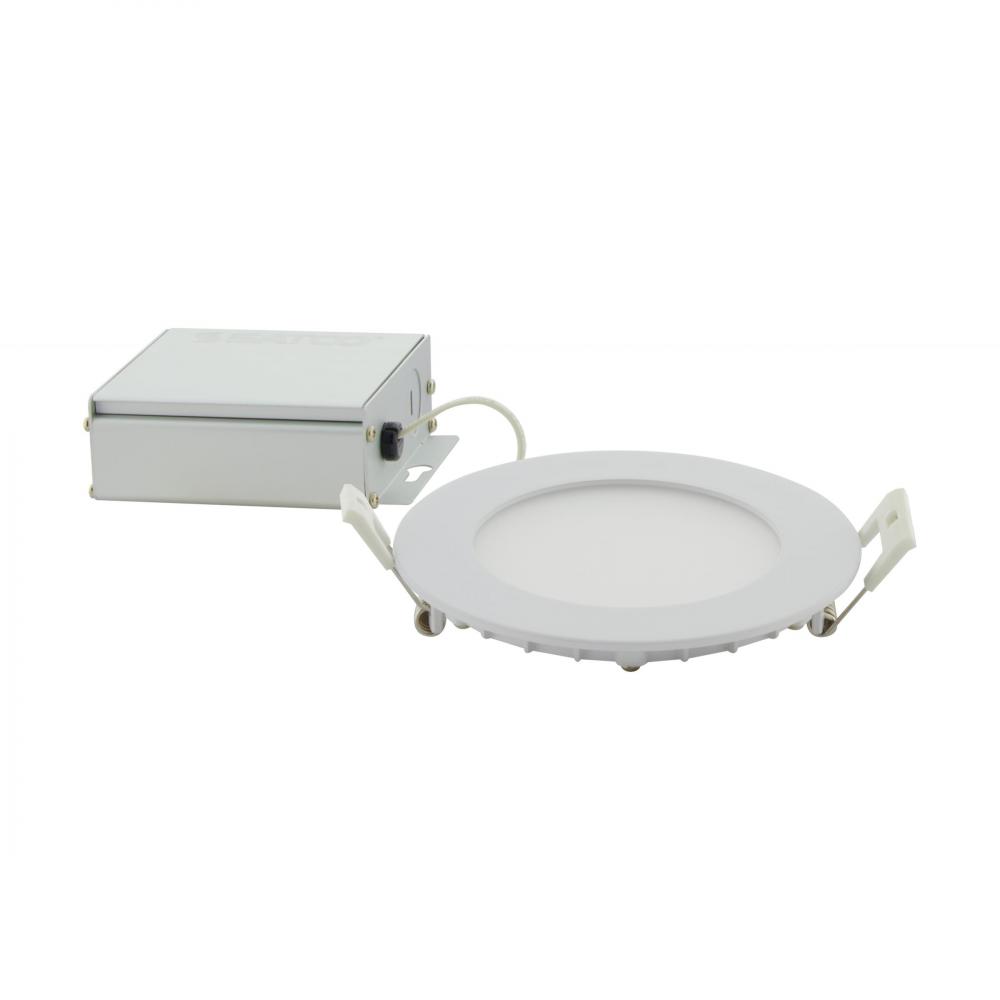

10 Watt; LED Direct Wire Downlight; Edge-lit; 4 inch; CCT Selectable; 120 volt; Dimmable; Round; (S11826)
10 Watt; LED Direct Wire Downlight; Edge-lit; 4 inch; CCT Selectable; 120 volt; Dimmable; Round; Remote Driver
Product Specification
Item #
S11826
Dimensions
Height: 0.90"
Width: 4.72"
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Style
Traditional
Option
Energy Star
, LED
, Prop 65
Lumens
450-800
Kelvin
4001-4500
Category
Recessed
Sub Category
Direct Wire
Style
Utility
Additional Info
Candlepower: 240
Bulb Hours
50000
Bulb Kelvin
Warm to Cool White
Bulb Shape
Integrated LED
Bulb Type
LED
Diameter
4.72
Dimmable
Yes-Dimmable
Harmonized Codes
9405.11.8010
Lumens
700L
Ship Carton Height
5.39
Ship Carton Length
5.39
Ship Carton Width
2.36
Warranty
5 Year Limited - Fixtures
Air Tight
Yes
Amps
0.083A
ANSI Base
Integrated
BAA Compliant
No
Beam Spread
108
CA Prop-65
Lead
Candle Power
240
Carton Cubic Feet
0.0397
Cartons Per Unit
1
CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
4.25 in. Cutout
Clearance Height
2
Connection
Direct Wired
Country Of Origin
China
CRI
90
Dimmable Down To
100 to 10 percent
Dimming Type
Reverse Phase or Phase Selectable
Efficacy
70.00 LPW
ES Category
Downlight Recessed
ES Unique ID
ESID-2369679
FCC Compliant
Yes
Feature 1
ColorQuick CCT Selectable
Feature 10
120V
Feature 2
90 CRI
Feature 3
Wet location rated
Feature 4
Dimmable
Feature 5
IC Rated
Feature 6
Air Tight Rated
Feature 7
Title 24 Compliant
Feature 8
ENERGY STAR Certified
Feature 9
108-Degree Beam Angle
Finish Family
White
Fixture shape
Round
Has Driver
Yes
IC Rated
Yes
Incandescent Equivalent
45W
Indoor Outdoor
Indoor
Installation Notes
**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
IP Rating
IP20
JA8 Compliant
Yes
Lens Finish
Frost
Lens Material
Poly methyl methacrylate (PMMA)
Long Description
SATCO|NUVO’s S11826 LED Slimfit Downlight is among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. T
Material
Aluminum
Max Drywall Thickness
1/2 in.
Mounting Procedure
Ceiling
Operating Frequency
60Hz
Operating Temprature
-20C (-4F) to +45C (+113F)
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
52
Rec Spacing Between Fixtures
3 ft. to 4 ft.
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO’s LED Slimfit Downlights are among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. A vari
Safety Listing
cETLus - Listed
SDS class
LED_Lamp
Short Description
10WLED/DW/EL/4/CCT-SEL/RND/RD
Sloped Ceiling Compatible
No
Specification Notes
Lumens (L) vary with color temperature (K): 2700K 650L / 3000K 670L / 3500K 700L / 4000K 700L / 5000K 690L
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
Yes
Total Harmonic Distortion
<20%
Trim Color
White
Trim Material
Aluminum
Wattage Selectable
No
Weight Lb.
0.71
