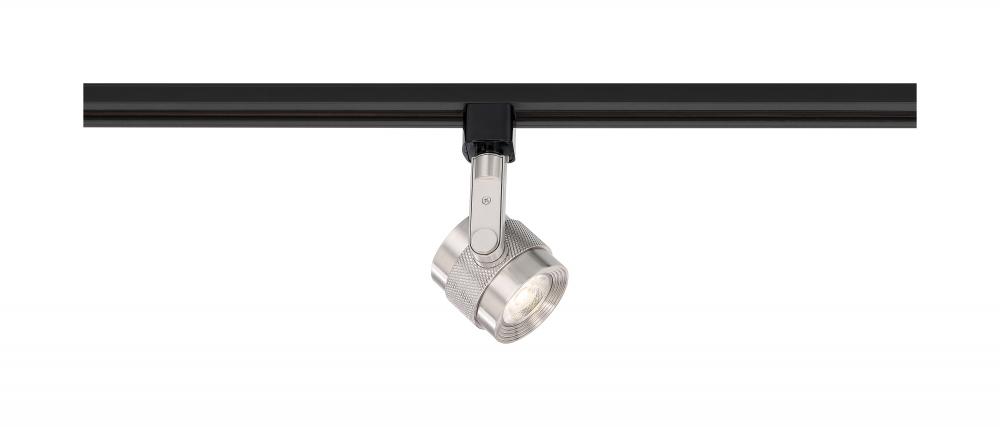

LED; 12 Watt Piston Track Head; Brushed Nickel; 36 deg. Beam Angle (TH499)
LED; 12 Watt Piston Track Head; Brushed Nickel; 36 deg. Beam Angle
Product Specification
Item #
TH499
Dimensions
Height: 2.75"
Width: 2.75"
Additional product details
Category
Track Ltg.
Subcategory
Track Heads
Finish
Nickel
Style
Contemporary
, Traditional
, Modern
Option
LED
, Prop 65
Lumens
801-1100
Kelvin
2501-3000
Category
Track Lighting
Sub Category
Track Head
Style
Modern and Contemporary
Additional Info
Track heads are H-track compatible for single circuit track lighting runs
Avg Rated Hours
30000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Dimmable
Yes-Dimmable
Each Height
6
Each Length
4.25
Each Width
3.25
Length
2.75
Lumens
1020L
Tariff Code
9405.11.6020
Warranty
3 Year Limited - Fixtures
Amps
0.100A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
36
CA Prop-65
Lead
CCT Selectable
No
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Country Of Origin
China
CRI
90
Dimmable Down To
100 to 20 percent
Dimmable Function
120V only
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable
Each Cube
0.048
Each Quantity
1
Efficacy
85.00 LPW
FCC Compliant
Yes
Feature 1
New Mono Points
Feature 2
New Linear Track Bars
Feature 3
Expanded Track Head Offering
Feature 4
Customizable Accent Lighting For Low To Mid Ceiling
Feature 5
Residential and Commercial
Finish Family
Nickel
Incandescent Equivalent
60W
Indoor Outdoor
Indoor
JA8 Compliant
Yes
Lens Material
Poly methyl methacrylate (PMMA)
Long Description
The LED piston track head of Satco's TH499 delivers energy-efficient lighting for a variety of commercial and residential environments. The head is compatible with Halo (H) tracks, and is used in single circuit lighting runs. The lightweight aluminum h
Material
Aluminum
Mounting Procedure
Ceiling
Operating Frequency
60Hz
Operating Temp
-17C (+1.4F) to +45C (+113F)
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
60
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
This Satco track expansion includes mono points, linear track bars and the addition of several new track heads with modern profiles and adjustable design features, offering even more versatility and new direction to our track products! These introductions
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
12W LED PISTON TRACK HEAD
Temperature (CCT)
3000K
Title 20 Compliant
No
Title 24 Compliant
Yes
Track Head Style
Piston
Wattage Selectable
No
Weight Lb.
0.77
