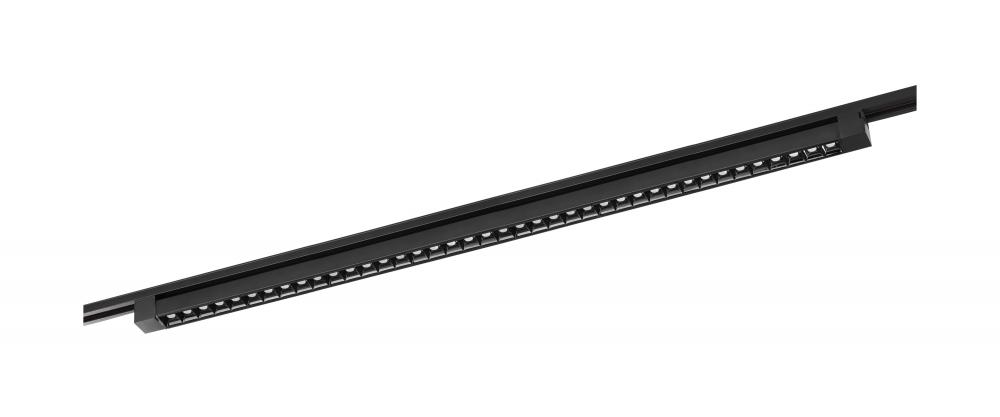

60W LED; 4FT; Track Light Bar; Black Finish; 30 deg. Beam Angle (TH507)
60W LED; 4FT; Track Light Bar; Black Finish; 30 deg. Beam Angle
Product Specification
Item #
TH507
Dimensions
Height: 1.25"
Width: 1.50"
Additional product details
Category
Track Ltg.
Subcategory
Track Heads
Finish
Black
Style
Contemporary
, Traditional
, Modern
Option
LED
, Prop 65
Lumens
3300+
Kelvin
2501-3000
Category
Track Lighting
Sub Category
Track Head
Style
Modern and Contemporary
Additional Info
Head rotates 270 degrees
Avg Rated Hours
30000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Dimmable
Yes-Dimmable
Each Height
45
Each Length
2.5
Each Width
1.75
Length
44.75
Lumens
3840L
Tariff Code
9405.11.6020
Warranty
3 Year Limited - Fixtures
Amps
0.500A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
30
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
China
CRI
90
Dimmable Down To
100 to 20 percent
Dimmable Function
120V only
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable
Each Cube
0.1139
Each Quantity
1
Efficacy
64.00 LPW
FCC Compliant
Yes
Feature 1
New Mono Points
Feature 2
New Linear Track Bars
Feature 3
Expanded Track Head Offering
Feature 4
Customizable Accent Lighting For Low To Mid Ceiling
Feature 5
Residential and Commercial
Finish Family
Black
Incandescent Equivalent
300W
Indoor Outdoor
Indoor
JA8 Compliant
No
Lens Material
Poly methyl methacrylate (PMMA)
Long Description
At home or in a commercial space, Satco's TH507 track bars are an easy way to add linear effects to your lighting and accent architectural features like relief walls, artwork, signs, and more. The manufactured bars contain superior, long-lasting, and n
Material
Aluminum / Plastic
Mounting Procedure
Ceiling
Operating Frequency
60Hz
Operating Temp
-17C (+1.4F) to +45C (+113F)
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
This Satco track expansion includes mono points, linear track bars and the addition of several new track heads with modern profiles and adjustable design features, offering even more versatility and new direction to our track products! These introductions
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Short Description
60W LED 4 FOOT TRACK BAR
Temperature (CCT)
3000K
Title 20 Compliant
No
Title 24 Compliant
No
Wattage Selectable
No
Weight Lb.
2.64
