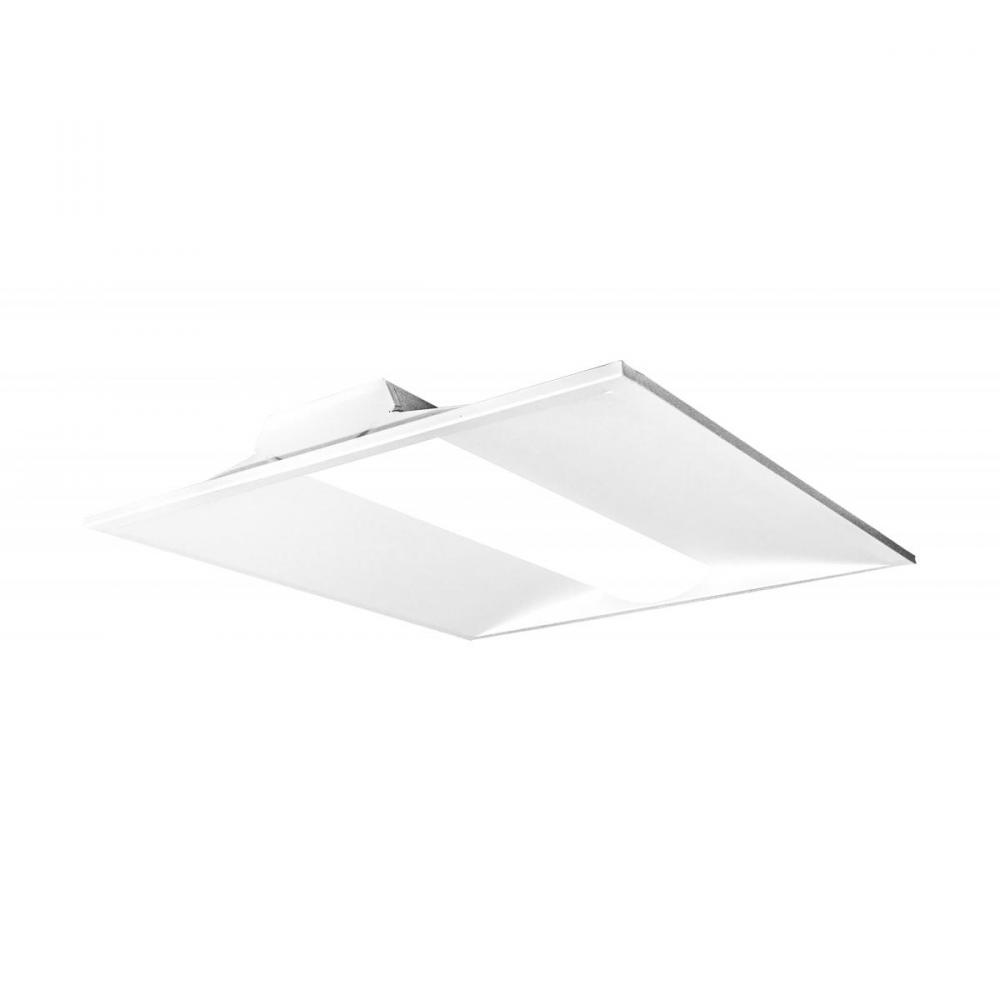

2X2 Single Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable; (65/690)
2X2 Single Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable; 100-277V
Product Specification
Item #
65/690
Dimensions
Height: 2.61"
Width: 23.74"
Additional product details
Category
Track Ltg.
Subcategory
Track Heads
Finish
White
Style
Traditional
Option
LED
, Prop 65
Lumens
3300+
Kelvin
4001-4500
Category
Troffer
Sub Category
Center Basket
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Dimmable
Yes-Dimmable
Each Height
25.67
Each Length
3.75
Each Width
25.63
Length
23.74
Lumens
3300L-4400L
Tariff Code
9405.11.6020
Warranty
5 Year Limited - Fixtures
Amps
0.300-0.108/0.350-0.126/0.400-0.144A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
120
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Hardwire
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Standard
DLC Primary Use
2x2 Luminaires for Ambient Lighting of Interior Commercial Spaces
Each Cube
1.4278
Each Quantity
1
Efficacy
110.00/110.00/110.00 LPW
FCC Compliant
Yes
Feature 1
Volumetric design
Feature 2
Watts: 30W - 35W - 40W
Feature 3
Lumens: 3300L - 4400L
Feature 4
Color temperature: 3500K/4000K/5000K
Feature 5
Operating temperature: -20C (-4F) to a maximum of 40C (104F)
Finish Family
White
Fixture shape
Square
Flicker Free
Yes
Has Driver
Yes
HID Equiv
70W-100W
IC Rated
Yes
Incandescent Equivalent
125W
Indoor Outdoor
Indoor
IP Rating
IP20
JA8 Compliant
No
Lens Material
Poly methyl methacrylate (PMMA)
Long Description
SATCO|NUVO's 65-690 is a two foot by two foot single basket troffer which features selectable wattage and color temperature. The troffer features an acrylic linear prismatic lens which allows for broad, even light distribution. The driver allows for fl
Material
Steel
Mounting Procedure
Ceiling
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Pack Type
Box
Panel Size
2x2
Power Factor
0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
A two foot by two foot single basket troffer which feature selectable wattage and color temperature. The troffer features an acrylic linear prismatic lens which allows for broad, even light distribution. The driver allows for flicker-free illumination, and
Safety Listing
cULus - Certified
SDS class
LED_Fixture
Short Description
2X2 SINGLE BASKET TROFFER
Temperature (CCT)
3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
<20%
Wattage Selectable
Yes
Weight Lb.
6.06
