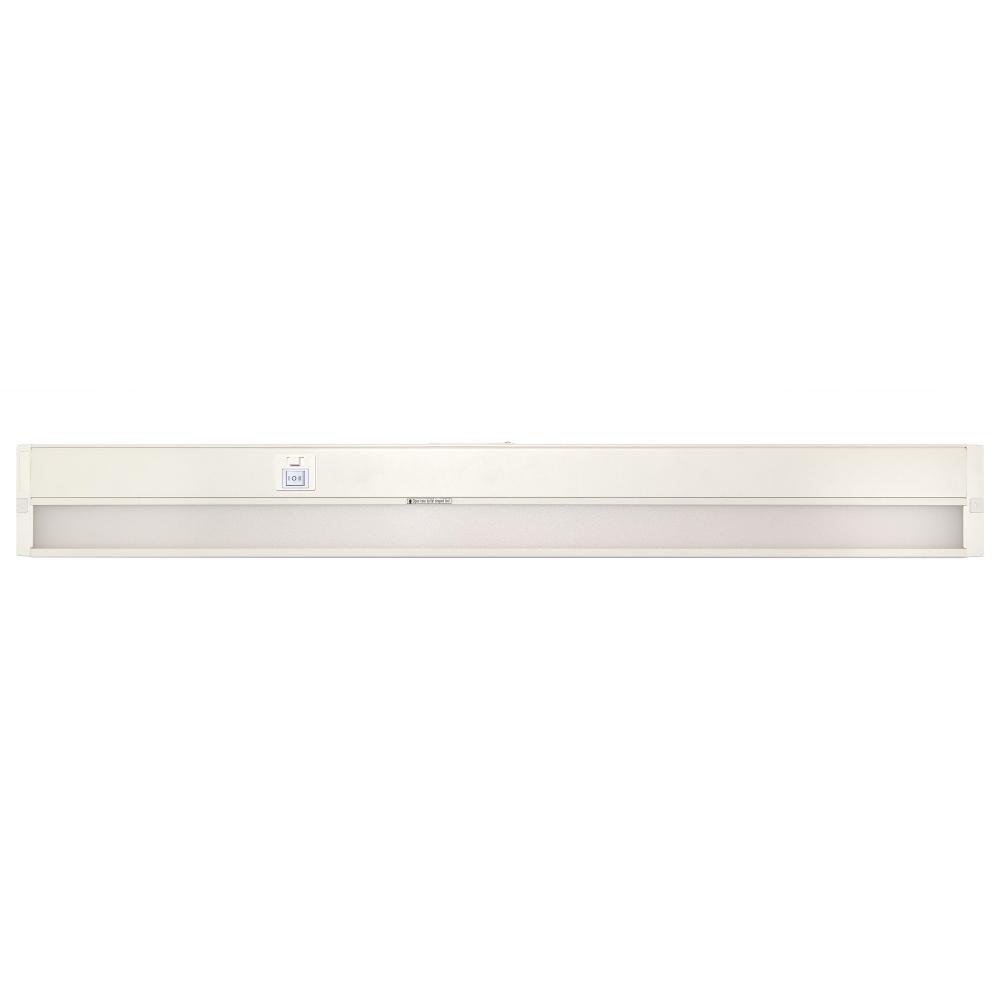

20 Watt; 34 Inch LED White Under Cabinet Light; CCT Selectable (63/505)
20 Watt; 34 Inch LED White Under Cabinet Light; CCT Selectable
Product Specification
Item #
63/505
Dimensions
Height: 1.00"
Width: 3.50"
Additional product details
Category
Undercabinet
Subcategory
Other Undercabinet
Finish
White
Option
LED
, Prop 65
Lumens
1101-1600
Kelvin
4001-4500
Category
Under Cabinet & Cove
Sub Category
Linear Strip
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm to Cool White
Dimmable
Yes-Dimmable
Each Height
1.38
Each Length
35.24
Each Width
3.74
Length
34
Lumens
1500L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.167A
ANSI Base
Integrated
Beam Angle
105
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 10 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable or Triac
Each Cube
0.1053
Each Quantity
1
Efficacy
75.00 LPW
FCC Compliant
Yes
Feature 1
Counter Quick's high-quality design illuminates counter space with a clean, bright light that showcases natural and true colors
Feature 2
Selectable CCT technology allows you to switch between 3000K, 4000K, and 5000K color temperatures; 90 CRI
Feature 3
Two mounting options to best fit your installation: Use the integrated mounting screws or standard keyhole mounting
Feature 4
Three wiring configurations for ease of installation: Direct Wire to Fixture, Direct Wire to Junction Box, or Plug into an outlet with Power Cord (sold separately)
Feature 5
Various knockouts along the back and sides provide more access points for convenient wiring; An expanded internal compartment leaves room to work and stores the connected wire with plenty of room to close the fixture
Feature 6
Powder Coated Aluminum body provides a high-quality, durable design that includes a textured lens for premium light distribution
Feature 7
Low profile, slim design. Measures 34 in. Length x 3.5 in. Width x 1 in. Height
Finish Family
White
Fixture shape
Rectangle
Has Driver
Yes
Impact Rating (IK)
IK08
Incandescent Equivalent
100W
Indoor Outdoor
Indoor
IOT Enabled
No
IP Rating
IP20
JA8 Compliant
No
Lens Finish
Frosted White
Lens Material
Polycarbonate (PC)
Long Description
No matter how you hang it, install it, connect it, link it, wire it, or light it - the 63-505 34 inch Counter QUICK LED under cabinet light is designed to help get the job done; with installation solutions that save on labor, quality, and durability that m
Material
Aluminum
Mounting Procedure
Under Cabinet: Screws
NSF Approved
No
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
R9 Value
65
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
No matter how you hang it, install it, connect it, link it, wire it, or light it - Counter QUICK LED under cabinet lights are designed to help get the job done; with installation solutions that save on labor, quality, and durability that make for a long, m
Safety Listing
cETLus
SDS class
LED_Fixture
Short Description
UNDER CAB LED SCCT 34" - WH
Sloped Ceiling Compatible
No
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
<20%
Wattage Selectable
No
Weight Lb.
1.88
