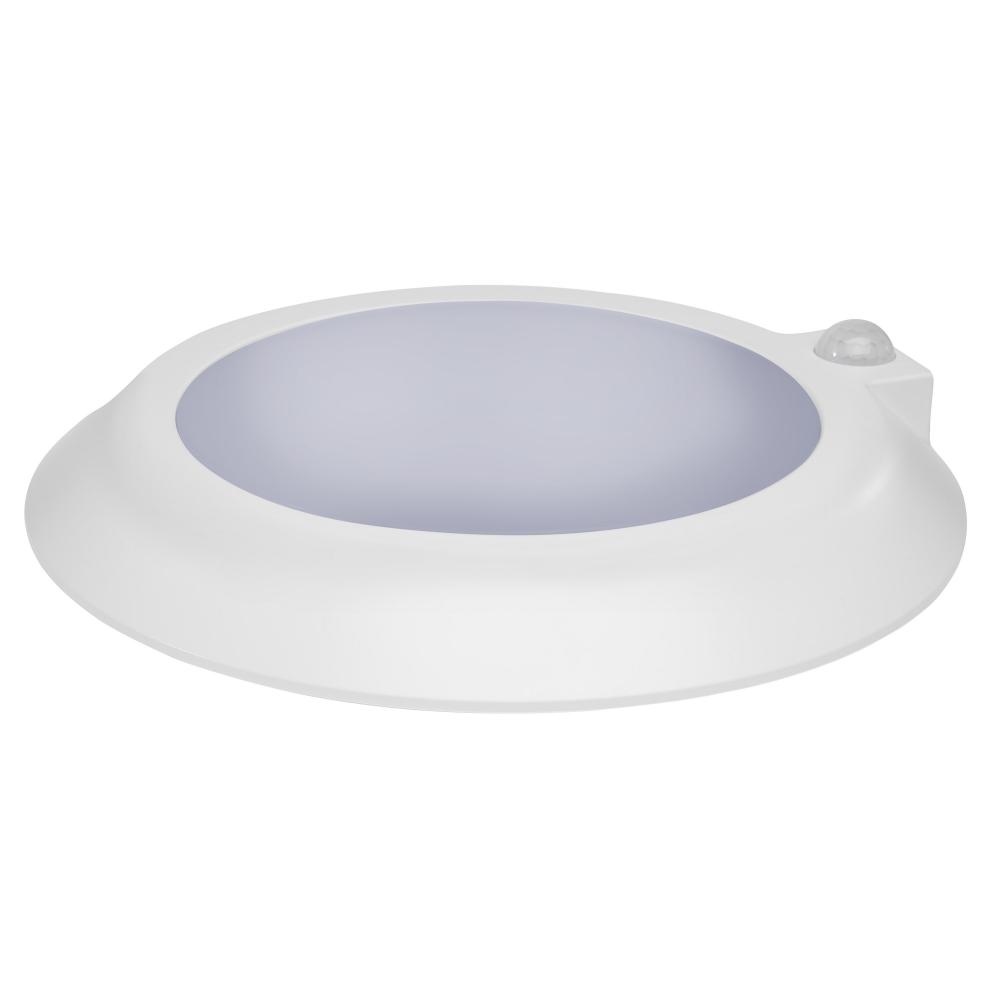

10 Inch; LED Disk Light; Fixture with Occupancy Sensor; White Finish; CCT Selectable (62/1821)
10 Inch; LED Disk Light; Fixture with Occupancy Sensor; White Finish; CCT Selectable
Product Specification
Item #
62/1821
Dimensions
Height: 1.65"
Width: 9.80"
Additional product details
Category
Flush Mounts
Subcategory
Other Flush Mounts
Option
Energy Star
, LED
, Prop 65
Voltage
100-120
Lumens
801-1100
Category
Close-to-Ceiling
Sub Category
LED Disk
Style
Contemporary
Bulb Volts1
120V
Additional Info
PIR sensor specs: Detection area up to 20ft max; Bi-level 30-100% or 0-100% with a minimum shut-off time of 0-3 sec to a maximum of 5 minutes.
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White to Natural Light
Diameter
9.800000000000001
Dimmable
Non-Dimmable
Each Height
10.039
Each Length
10.039
Each Width
1.81
Lumens
1060L-1150L
Tariff Code
9405.11.8020
Warranty
5 Year Limited - Fixtures
Amps
0.158A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
110
CA Prop-65
Lead
CCT Selectable
Yes
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Closet Rated
No
Connection
Hardwire
Country Of Origin
Malaysia
CRI
93
Dimmable Down To
100 to 10 percent
Each Cube
0.1056
Each Quantity
1
Efficacy
55.79/58.16/60.53 LPW
ES Category
Other
ES Unique ID
ESID-2508456
FCC Compliant
Yes
Feature 1
5 CCT Selectable
Feature 2
On/Off or 30 percent step down PIR Sensor
Feature 3
93 CRI
Feature 4
Damp Rated
Feature 5
Mount to 3 inch and 4 inch Junction Boxes
Feature 6
Energy Star
Feature 7
9.80 inch Diameter x 1.65 inch Height
Finish Family
White
Fixture shape
Round
Has Driver
No
Incandescent Equivalent
100W
Indoor Outdoor
Indoor
Installation Notes
Keyhole Slots
IOT Enabled
No
JA8 Compliant
Yes
Lens Finish
White
Lens Material
Acrylic
Long Description
Introducing SATCO|NUVO's 62-1821 LED CCT Selectable Disk Light, revolutionizing your lighting experience with Colorquick technology. This 10-inch, 19-watt disk light features integrated occupancy sensors and is ideal for Multi-Family and Residential lo
Material
Steel
Mounting Procedure
Ceiling
NSF Approved
No
Operating Frequency
60Hz
Operating Temp
-25C (-13F) to +40C (+104F)
Pack Type
Color Box
Photocell
Has Occupancy Sensor
Power Factor
0.9
Quantity In Pack
1
R9 Value
58
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's LED CCT Selectable Disk Lights are equipped with integrated occupancy sensors, revolutionizing your lighting experience with our Colorquick technology. Available in 7-inch and 10-inch sizes, these disk lights are perfectly suited for vario
Safety Listing
cETLus
SDS class
LED_Fixture
Short Description
10" LED DISK LIGHT W/ OCC WHIT
Sloped Ceiling Compatible
Yes
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
Yes
Wattage Selectable
No
Weight Lb.
0.95
Finish
Additional options that would change other selections
Recommended Items
Call for Price
BASE PRICE:
$
49
99
/
/ 1
($49.99 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 49 items available.
